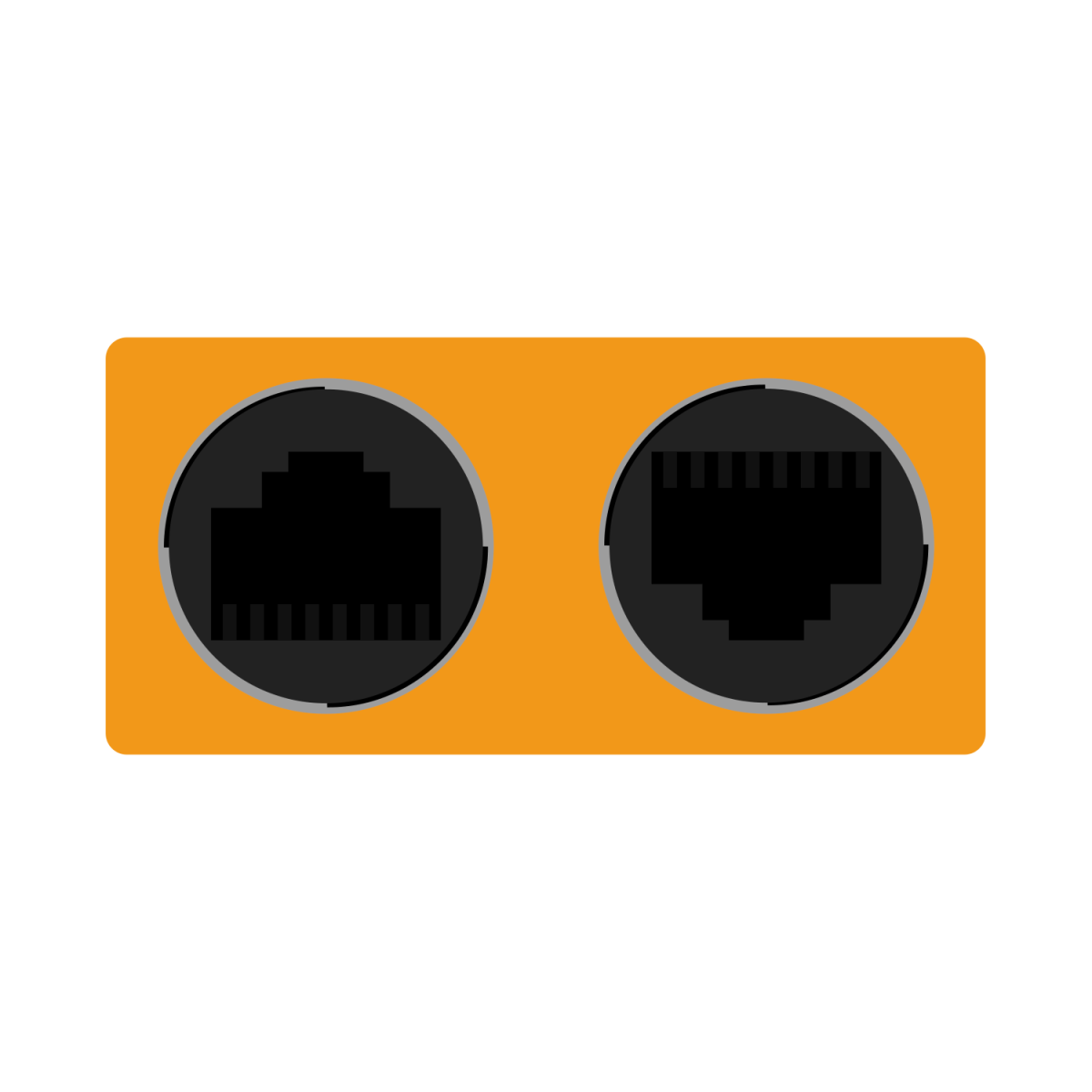

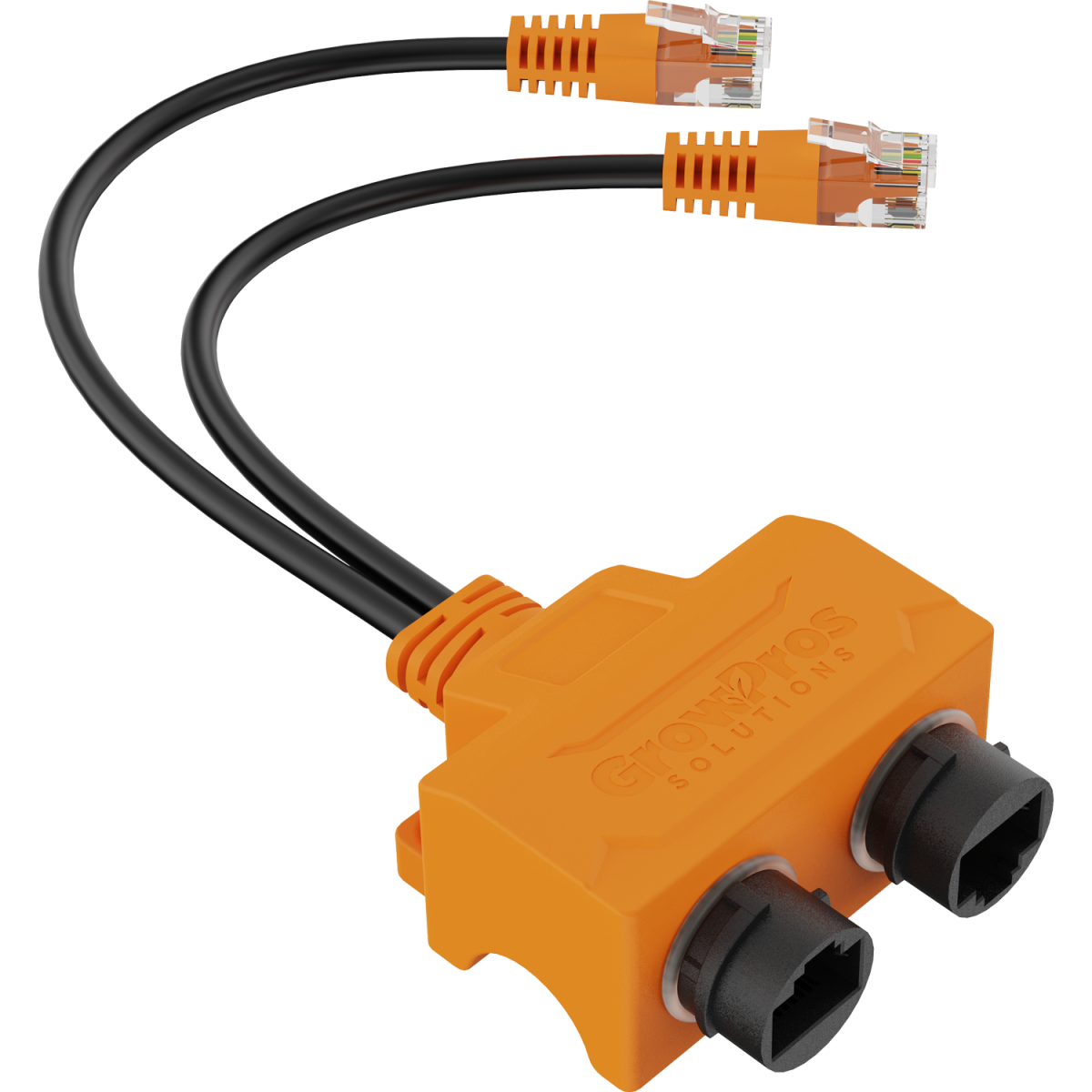

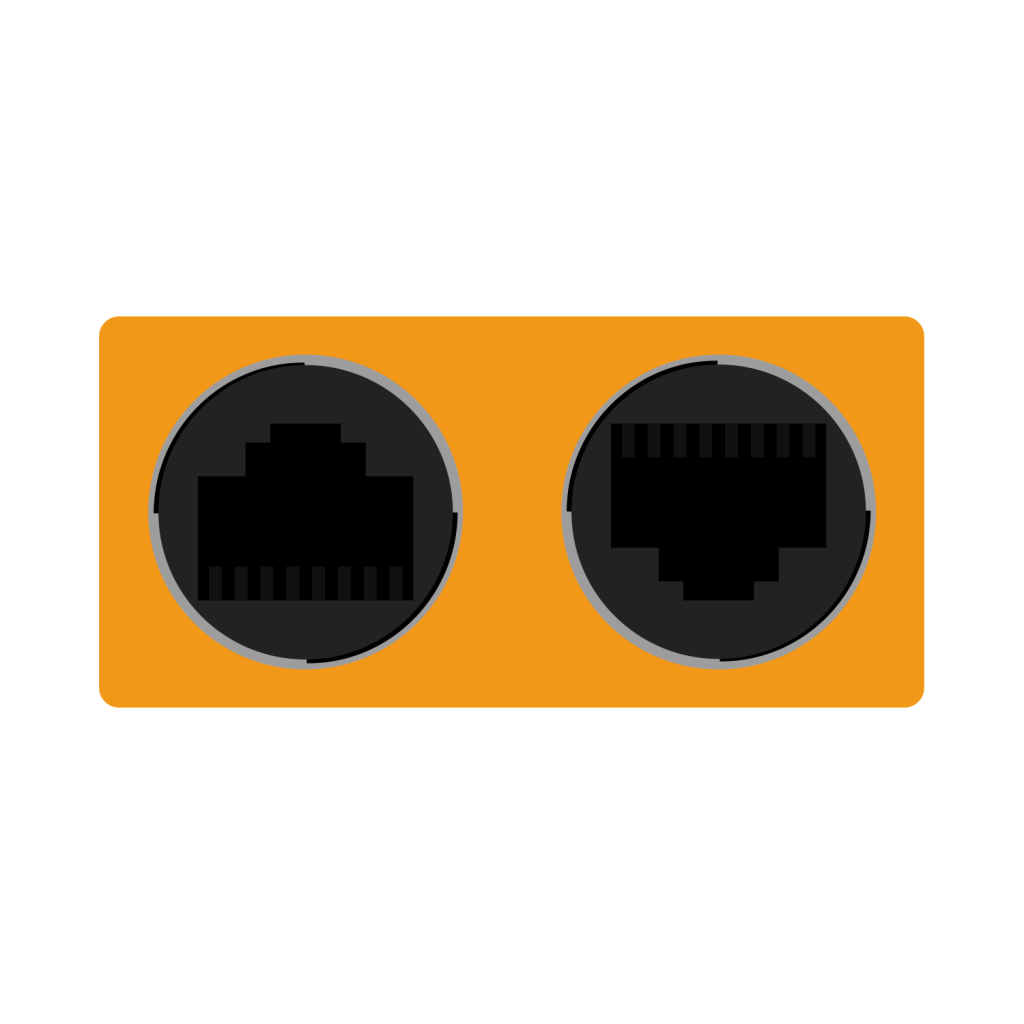

Orange Female WP RJ45 9p8c to Dual Male RJ12 6p6c Data Adapter

Name: Orange Female WP RJ45 9p8c to Dual Male RJ12 6p6c Data Adapter
Brand: Grow Pros Solutions
SKU: 2RJ45-2RJ12-DATA-ADAPTOR
Price: 18.00 USD
Availability: InStock

$18.00

Grow Pros Solutions has upgraded to using Waterproof RJ45 cables for lighting data control. The screw style end cap on our WP RJ45 data connections seals the data connections from moisture that corrodes the data pin connections and lead to failed data signals. The era of traditional 4pin RJ12 non-waterproof data connections that have been used in indoor Agriculture with dual ended HPS and older LEDs has come to end. No more need to gum connections with dielectric grease or spend hours troubleshooting to find the one faulty data cord or splitter.

Our Data Adapters are color coded for your convenience.

Please read each description to make sure you select the correct adapter. Feel free to reach out to our tech support

FEATURES & BENEFITS

Typically only 1 adapter required per controller/room.
The dual male RJ12 connector receives two different independent standard analog 0-10v dimming signal from a third party digital lighting controller. Each 6p6c Pin Out from controller = [1] X [2] (+) [3] (-) [3] (-) [5] (+) [6] X to our WP RJ45 8p8c dimming protocol – request Pin Outs for specific Grow Pros Solutions lights from chuck@wegrowpros.com.
The dual RJ45 female ports use a Waterproof interface to ensure a firm and reliable connection, reducing the risk of accidental disconnection in active installations.
Turns 2 independent control signals into two identical Grow Pros Solutions Dual Channel lighting outputs for connecting multiple Grow Pros Dual Channel lights together.
Gold-plated contact pins enhance long-term contact reliability and help maintain consistent signal transmission in low-voltage control applications.
A sealed design at the ports helps protect connections in environments where humidity or moisture may be present.
Use WP RJ45 cables and GPS 4 Way RJ45 Data Splitter to connect multiple rows of lights together to connect to the adapter.
Compatible with most 0-10v Digital Lightings Controllers that have 2x independent 0-10v RJ12 signal outputs, TrolMaster (2) LMA-14 (GPS Dual channel lights only), (2) AC Infinity Adapter A (GPS dual channel lights only).

SKU: 2RJ45-2RJ12-DATA-ADAPTOR

Description
Additional information

Description

The Orange Data Adapter Female WP RJ45 9p8c to Dual Male RJ12 6p6c is designed to route control signals from an environmental controller to dual or multi channel grow lights. It accepts two RJ12 male inputs from the controller side (or LMA-14), combines the control signals into one unified control stream, and then duplicates that combined signal to two RJ45 push-lock female outputs for grow light connections.

Both RJ45 outputs deliver the same merged control signal, allowing multiple grow light channels or fixtures to operate under consistent control.

A waterproof sealing design at the push-lock RJ45 ports helps protect connections in indoor grow rooms and other controlled environments where moisture or humidity may be present.

Applicable Scenarios:

Environmental Controller to Grow Light Control Designed for routing and managing control signals from environmental controllers to dual- or multi-channel grow lights using secure RJ45 push-lock connections.
Indoor Gardening & Commercial Grow Rooms Ideal for professional indoor grow facilities where multiple control inputs must be combined and reliably delivered to lighting systems.
